Name: Storm Drain Inlets

Display Field: NOTE

Type: Feature Layer

Geometry Type: esriGeometryPoint

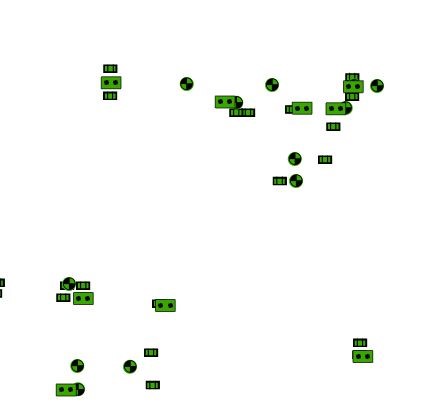

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This point file represents the different types of storm drain structures associated with ACHD Storm Drain infrastructure. The Storm Drain Structure layer is broken down for symbology reasons into 2 categories. The field "StrucType" is generalized based on the function of the structure. The field "Structure_SubType" is attributed with the type of structure. </SPAN></P></DIV></DIV></DIV>

Service Item Id: f33ed30656f947d2a59068a794c309d7

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 2385712.177896493
YMin: 653853.7194608233
XMax: 2533837.2786273304
YMax: 796044.624054823
Spatial Reference: PROJCS["NAD_1983_Transverse_Mercator",GEOGCS["GCS_North_American_1983",DATUM["D_North_American_1983",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",2625138.996430666],PARAMETER["False_Northing",0.0],PARAMETER["Central_Meridian",-115.75],PARAMETER["Scale_Factor",1.00011328],PARAMETER["Latitude_Of_Origin",41.66666666666666],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [39, 170, 225, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• NOTE ( type: esriFieldTypeString, alias: NOTE, editable: true, nullable: true, length: 200, defaultValue: null, modelName: NOTE )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, editable: true, nullable: true, length: 50, defaultValue: RECORD DRAWING, modelName: SOURCE , Coded Values: [RECORD DRAWING: RECORD DRAWING] , [DESIGN DRAWING: DESIGN DRAWING] , [ELECTRONIC FILE: ELECTRONIC FILE] , ...3 more... )
• JURISDICTION ( type: esriFieldTypeString, alias: JURISDICTION, editable: true, nullable: true, length: 50, defaultValue: ACHD, modelName: JURISDICTION , Coded Values: [ACHD: ACHD] , [ITD: ITD] , [CITY: CITY] , ...5 more... )
• STATUS ( type: esriFieldTypeString, alias: STATUS, editable: true, nullable: true, length: 50, defaultValue: ACTIVE, modelName: STATUS , Coded Values: [ACTIVE: ACTIVE] , [ABANDONED: ABANDONED] )
• ANGLE ( type: esriFieldTypeSmallInteger, alias: ANGLE, editable: true, nullable: true, defaultValue: null, modelName: ANGLE )
• GALLONS ( type: esriFieldTypeInteger, alias: GALLONS, editable: true, nullable: true, defaultValue: null, modelName: GALLONS )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• AssetID ( type: esriFieldTypeString, alias: AssetID, editable: true, nullable: true, length: 15, defaultValue: null, modelName: AssetID )
• StrucType ( type: esriFieldTypeString, alias: StrucType, editable: true, nullable: true, length: 25, defaultValue: null, modelName: StrucType , Coded Values: [CONTROL/MISC STRUCTURE: CONTROL/MISC STRUCTURE] , [PRE-TREATMENT STRUCTURE: PRE-TREATMENT STRUCTURE] , [SD INLET: SD INLET] , ...3 more... )
• MARKER ( type: esriFieldTypeInteger, alias: CB_MARKED, editable: true, nullable: true, defaultValue: null, modelName: MARKER )
• NPDES_PermitArea ( type: esriFieldTypeString, alias: NPDES_PermitArea, editable: true, nullable: true, length: 20, defaultValue: null, modelName: NPDES_PermitArea )
• Outfall_ID ( type: esriFieldTypeString, alias: Outfall_ID, editable: true, nullable: true, length: 255, defaultValue: null, modelName: Blank2 )
• Structure_SubType ( type: esriFieldTypeString, alias: Structure_SubType, editable: true, nullable: true, length: 25, defaultValue: null, modelName: Structure_SubType , Coded Values: [CATCH BASIN: CATCH BASIN] , [COMBO BOX: COMBO BOX] , [CONTROL/MISC STRUCTURE: CONTROL/MISC STRUCTURE] , ...10 more... )
• ConnectedWaterway ( type: esriFieldTypeString, alias: ConnectedWaterway, editable: true, nullable: true, length: 255, defaultValue: null, modelName: Blank1 )
• Location ( type: esriFieldTypeString, alias: Maint_Area, editable: true, nullable: true, length: 10, defaultValue: null, modelName: Location )
• CleanInspStatus ( type: esriFieldTypeString, alias: CleanInspStatus, editable: true, nullable: true, length: 255, defaultValue: null, modelName: CleanInspStatus , Coded Values: [0: Needs Inspection] , [1: Inspection Complete] , [2: Needs Cleaning] , ...3 more... )
• RecentCleanInsp ( type: esriFieldTypeDate, alias: RecentCleanInsp, editable: true, nullable: true, length: 8, defaultValue: null, modelName: RecentCleanInsp )
• City ( type: esriFieldTypeString, alias: City, editable: true, nullable: true, length: 255, defaultValue: null, modelName: City )
